Mr12Volt L322 Range Rover Apple CarPlay & Android Auto Interface (2009-2012)

About the Mr12Volt L322 CarPlay Kit

Model: P3000-L322

Upgrade your Range Rover L322's Denso infotainment system with the genuine Mr12Volt interface and add wireless Apple CarPlay and Android Auto, without replacing your original screen or dashboard. The kit connects directly to your Range Rover's MOST fibre optic network, the same digital audio path the factory Denso system uses, so sound quality is fully preserved through both base and Harman Kardon Logic 7 systems. Stream music, use Apple Maps, Google Maps or Waze, make hands-free calls and access your favourite apps, all through your original in-car display.

Key Features of the Range Rover L322 Interface

1. Wireless Apple CarPlay and Android Auto: Connect your iPhone or Android phone without a cable and use Apple Maps, Google Maps, Waze, Spotify, Apple Music, messages and hands-free calling on your L322’s original Denso screen.
2. Genuine MOST fibre integration: The kit connects to the Range Rover’s MOST fibre optic network, the same digital audio path the factory system uses. Nothing is converted to analogue, so sound quality is unchanged.
3. Base and Harman Kardon Logic 7 support: Works with both factory audio systems on the L322, with no extra amplifier or adapter needed.
4. Accessed through the factory USB menu: CarPlay and Android Auto open from Audio Video, Portable Audio, USB, so you switch between the Denso system and your phone using the menus you already know.
5. No screen modification: The factory screen stays in place. The USB module is disabled during installation and an optical bypass connector is included, so no extra wiring is needed.
6. Built-in DSP and OEM microphone support: The P3000 MM series includes a built-in digital sound processor and works with the car’s original microphone for clear hands-free calls.
7. Camera inputs: Supports reverse, front and blind spot cameras at up to AHD 1080P, shown on the factory screen.

The Mr12Volt P3000-L322 is the simplest way to add modern smartphone integration to a 2009 to 2012 Range Rover L322 while keeping the factory screen, sound system and interior exactly as Land Rover built them.

How it works

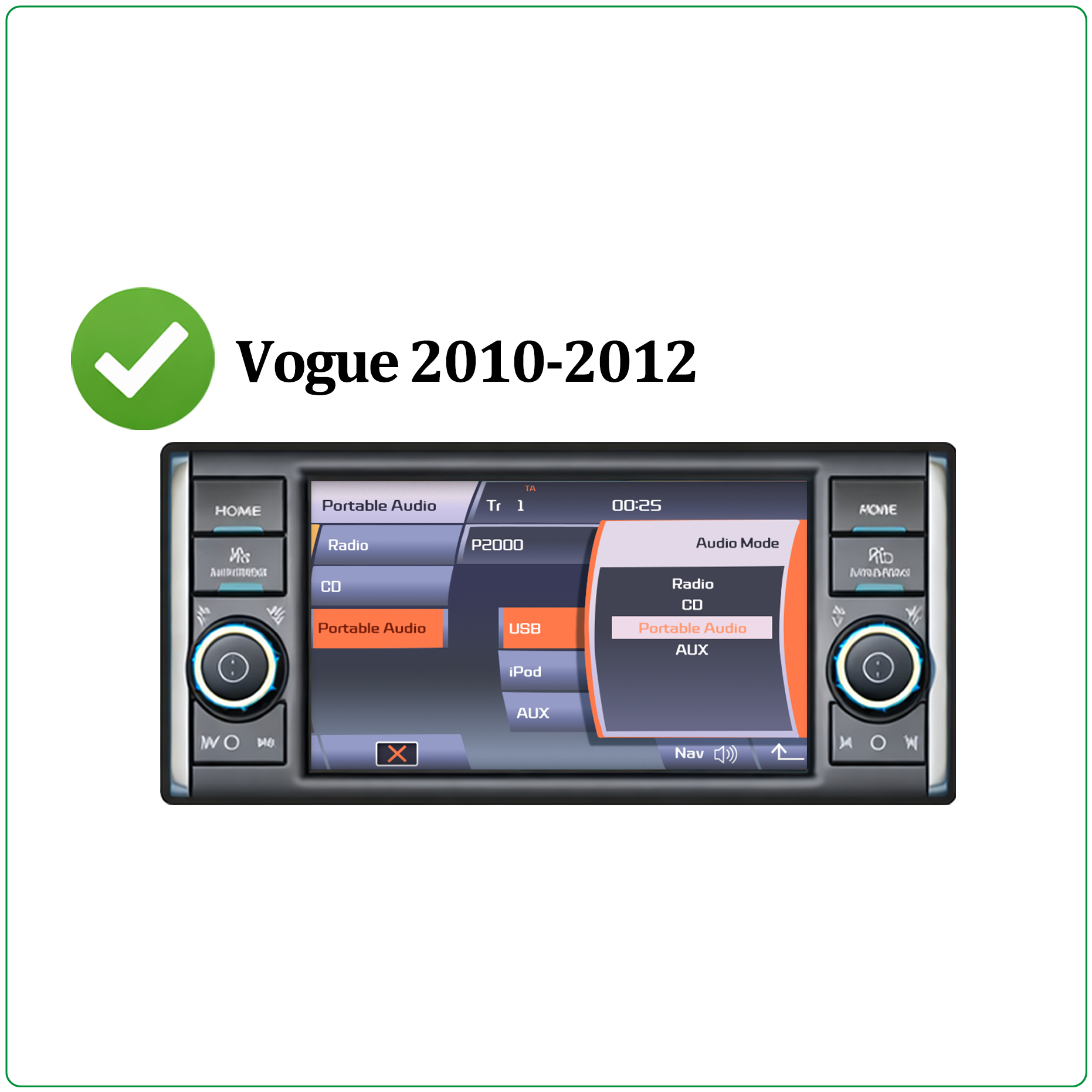

• Your car keeps its original Denso system, Mr12Volt is accessed through the USB media menu, go to Audio Video, Portable Audio, USB.
• The factory USB module is disabled during installation, an optical bypass connector is included in the package so it fits without extra wiring.


Model No: P3000-L322

The brand new Mr12Volt P3000 MM series has built in DSP and OEM microphone support.

Compatible with the following Range Rover:

• Range Rover Vogue (L322) 2009 - 2012

Genuine MOST Fibre Integration, No Screen Modification Required

Some retrofit kits for the L322 need the factory screen removed so a board can be fitted directly behind it, adding cost and installation time. The Mr12Volt interface skips that step entirely: it connects through your Range Rover's existing Denso MOST fibre network and USB wiring, the same digital path the factory system already uses. Nothing gets converted to analogue and back, your Harman Kardon Logic 7 or base sound stays exactly as Land Rover built it, and switching between the factory system and CarPlay uses your original menu, not a modified screen.

Why Buy From CarPlay Direct

•    Official UK authorised Mr12Volt stockist
•    Genuine UK-supplied products with full manufacturer warranty
•    Free UK delivery
•    Expert compatibility advice before ordering
•    UK-based technical support
•    Nationwide approved installer network

Customer Review:

I contacted them to order an MR12VOLT and it was dispatched the very same day. The customer service was absolutely outstanding. They even put me in touch with a local installer from their team, who fitted it for me that same day. The whole process was seamless from start to finish. Worth every penny. Highly recommend

Jamie Taylor - Google

Frequently Asked Questions

Does this need an AUX input?

No. It connects through your Range Rover's own Denso MOST fibre network, not an AUX port, so there's no drop in audio quality.

My Range Rover is a 2009 model, will this fit?

2009 was Land Rover's facelift year, so it depends on whether your car has the factory USB media module. Check Audio Video, Portable Audio for a USB option, if it's there, this kit fits. If you're not sure, send us your registration and we'll confirm before you order.

Does it work with Harman Kardon Logic 7?

Yes, both base and Harman Kardon Logic 7 systems are supported.

Can I still use a reverse or front camera?

Yes, reverse, front and blind spot camera inputs are all supported alongside the CarPlay interface.
