Add wireless Apple CarPlay and Android Auto to your Range Rover Sport while keeping everything the car already gives you: the factory touchscreen, the steering wheel controls, the factory microphone and your own sound system, whether that is the base setup, Harman Kardon Logic 7 or Meridian. CarPlay Direct is the official UK authorised Mr12Volt reseller.
Range Rover Sport Apple CarPlay & Android Auto
Find Your Range Rover Sport CarPlay Kit
Apple Carplay & Android Auto Upgrades
Your Range Rover Sport needs one of two kits. The split is not where most people expect it, because Land Rover changed the head unit partway through the L320's life as well as when the L494 replaced it. Find your car in the table, then read the section underneath, because cars registered in 2011 and 2012 sit right on a changeover and cannot be settled by year alone.
| Your Range Rover Sport | Years | System | Kit |
|---|---|---|---|
| Range Rover Sport (L320) | 2009 to 2011 | Denso, kit runs from the USB media menu | Denso kit, £364.99 |
| Range Rover Sport (L320) | 2012 | Bosch, kit runs from the TV menu | Bosch kit, £364.99 |
| Range Rover Sport (L494) | 2013 to 2015 | Bosch kit runs from the TV menu | Bosch kit, £364.99 |
Not sure? Check your dashboard

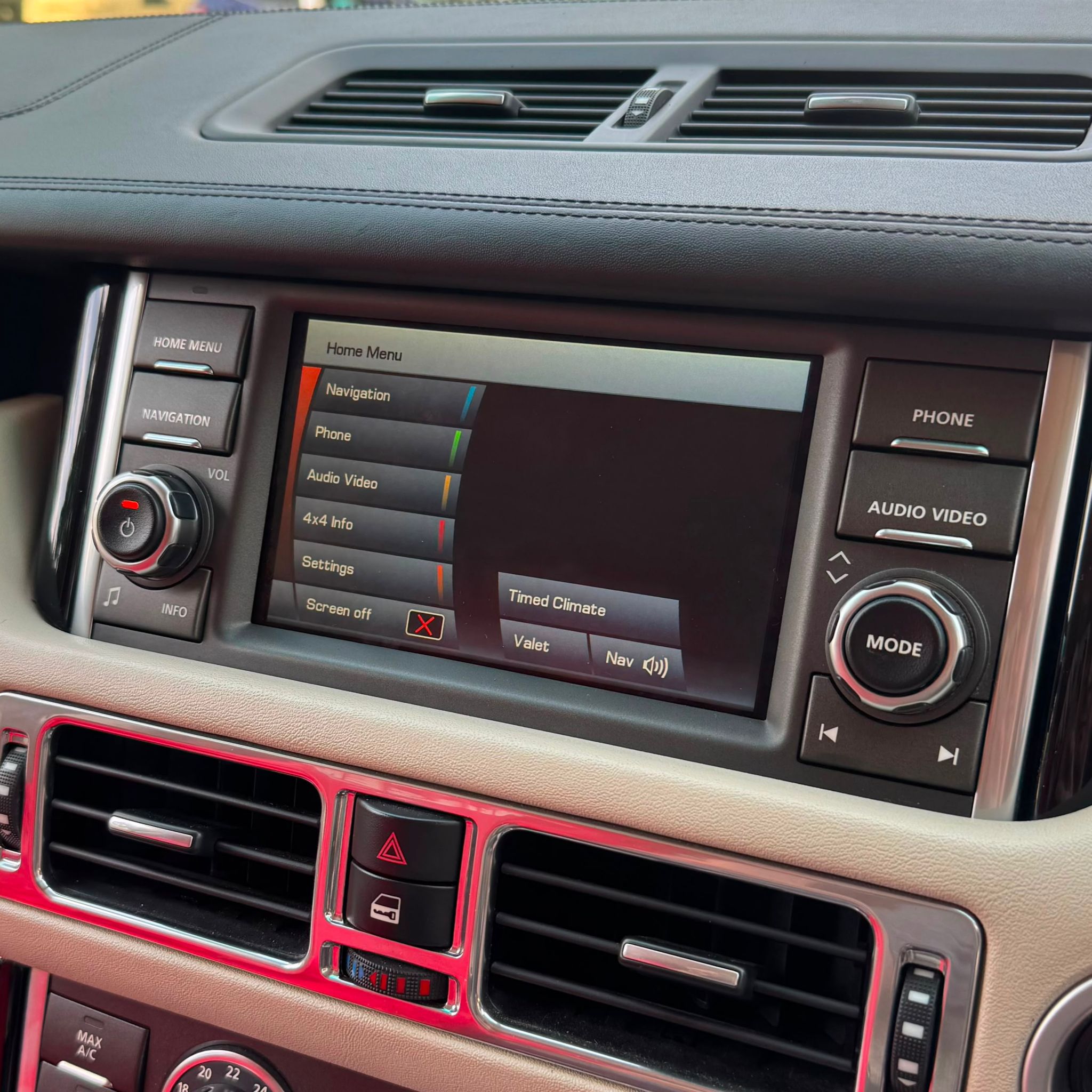

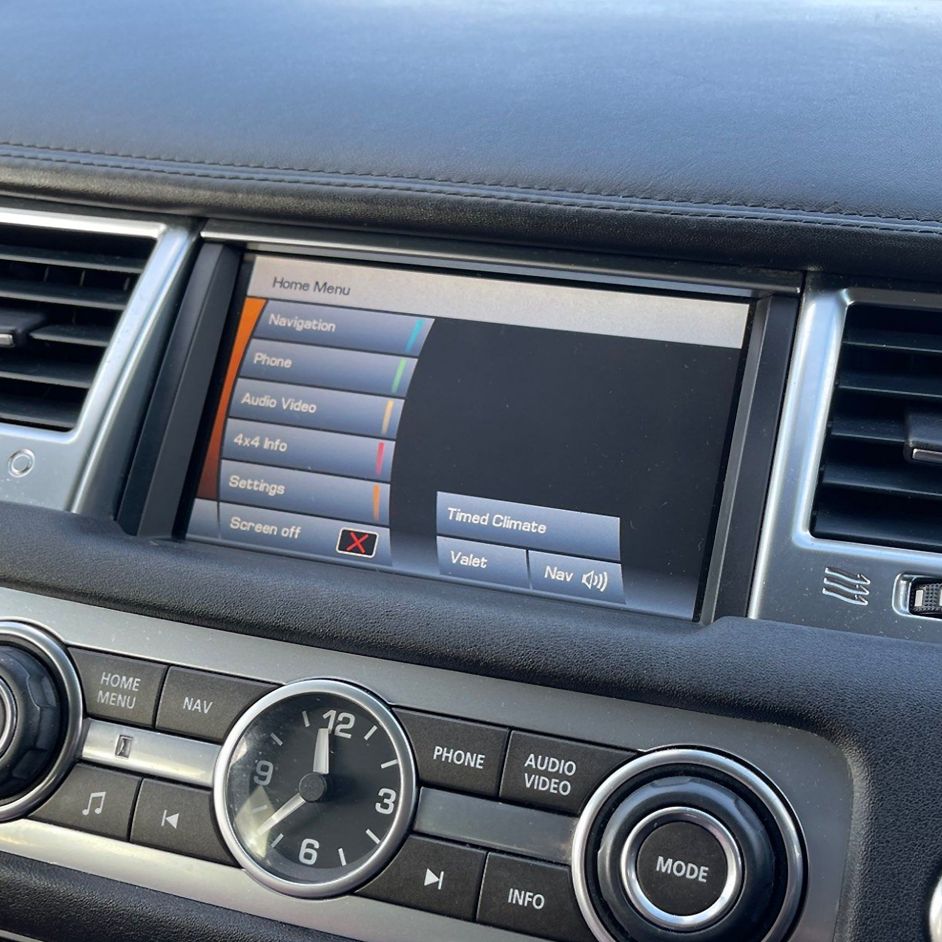

L320 DENSO (2009 - 2011)
Home Menu running down the left of the screen, with Navigation, Phone, Audio Video, 4x4 Info and Settings, a rotary MODE dial to the right, and a USB option under Audio Video, Portable Audio. If your Sport is registered in 2009, check that USB option before ordering, the facelift arrived partway through that year.

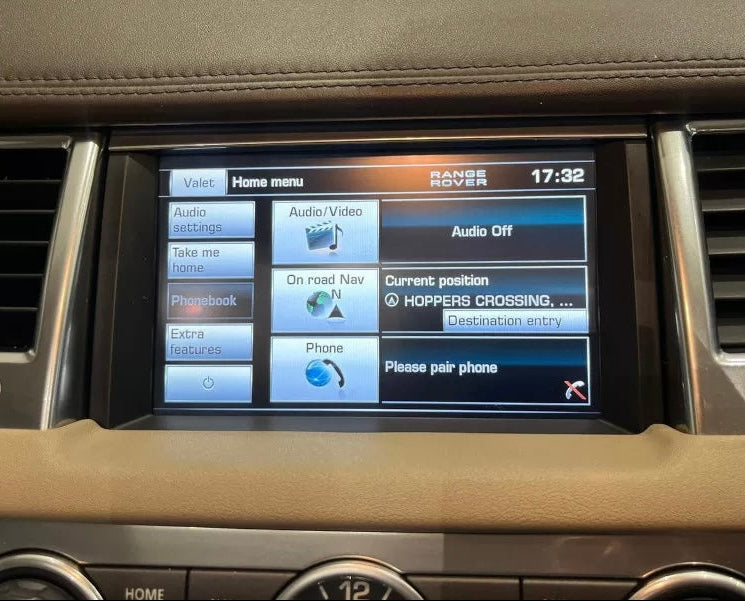

L320 Bosch (2012)
The Dual View touchscreen introduced for the 2012 model year, replacing the Denso system above. On the main menu, a Bosch system shows the clock on the right of the screen, a Harman system shows it in the middle. Because 2011 and 2012 registrations can be built either side of the change, send us your registration to confirm before ordering.

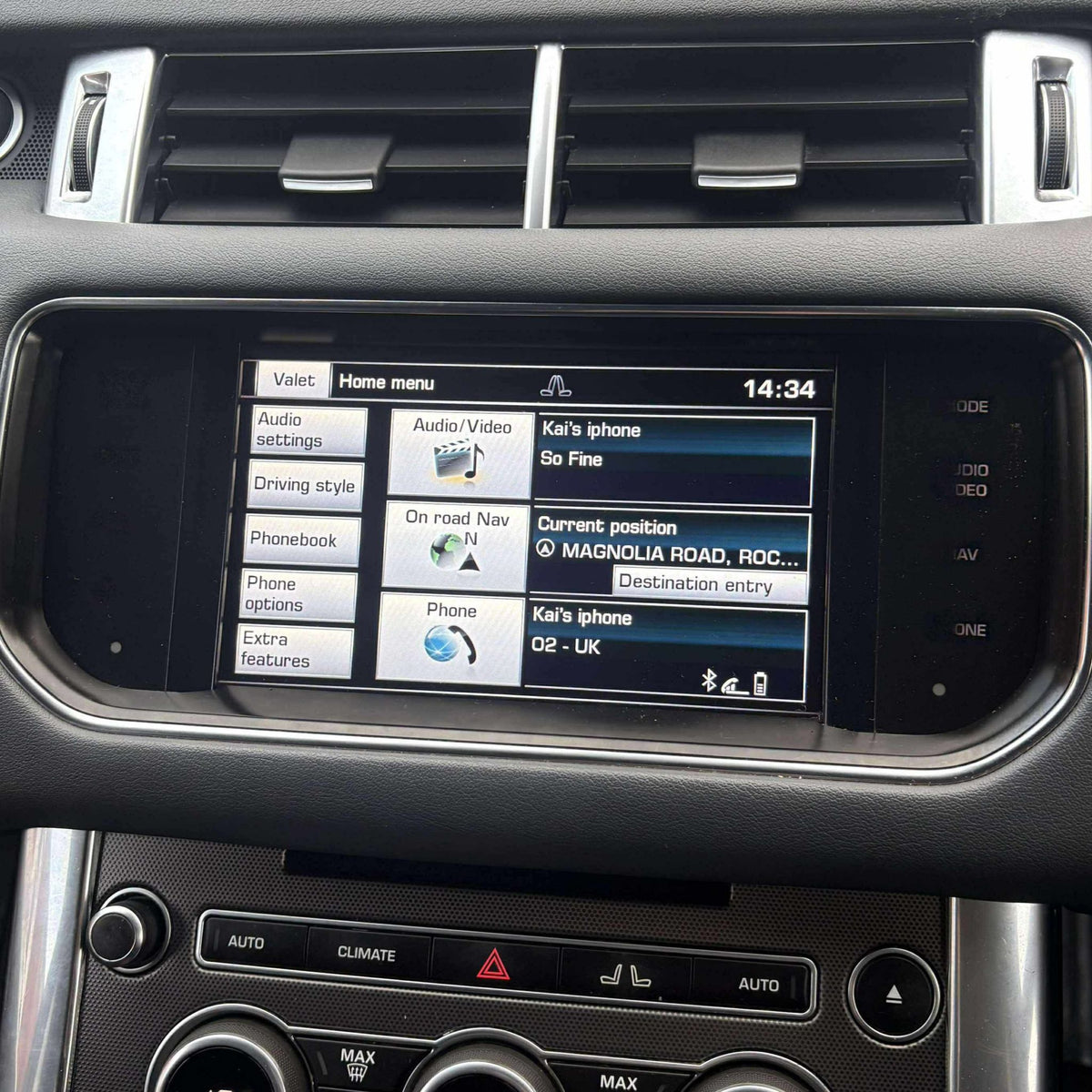

L494 Bosch (2013 - 2015)
The Bosch touchscreen carried over from the full size Range Rover, same screen and menus, just behind different dashboard trim. Clock on the right of the screen means Bosch, in the middle means the later Harman system.
Still not sure?
WhatsApp us your registration or VIN and we'll confirm compatibility before you order.
Mr12Volt P300 L320
Denso kit for Range Rover Sport L320 2009 to 2011
The Mr12Volt P3000-L320 interface connects directly to your Sport's MOST fibre optic network, the same digital audio path Land Rover itself uses, so sound quality, steering wheel controls and touchscreen operation all carry on working as intended. Once fitted, CarPlay and Android Auto appear under Audio Video, Portable Audio, USB in your factory media menu.
Wireless Apple CarPlay and wireless Android Auto, plus a wired option if you prefer a cable
Keeps your factory touchscreen, steering wheel controls and factory microphone
Genuine MOST fibre optic integration, not an AUX or Bluetooth dongle
Works with the base and Harman Kardon Logic 7 sound systems, factory amplifier retained
Screen mirroring, Bluetooth audio streaming and a 15 band DSP equaliser
Supports aftermarket reversing, front and blind spot cameras up to AHD 1080P
Official UK stock, full manufacturer warranty
Your car needs a USB option in the factory media menu, because the kit connects in place of the factory USB module, which is disabled during installation using the optical bypass connector supplied in the box. And the next and previous track buttons on the steering wheel are not supported on this kit, an OEM control limitation rather than a fault. Everything else on the wheel, including volume and phone controls, carries on working.
Mr12Volt P3000 JL12
Bosch kit for Range Rover Sport L320 2012 and L494 2013 to 2015
Cars with the Bosch system take the Mr12Volt P3000-JL12 interface, built specifically for it. Same genuine MOST fibre optic integration, same factory screen and controls, and once installed CarPlay and Android Auto run from the TV menu. Choose the variant that matches your car, either Range Rover Sport (L320) 2012 or Range Rover Sport (L494) 2013 to 2015.
Wireless Apple CarPlay and wireless Android Auto, plus a wired option if you prefer a cable
Keeps your factory touchscreen, steering wheel controls and factory microphone
Genuine MOST fibre optic integration, not an AUX or Bluetooth dongle
Works with the base and Meridian sound systems, factory amplifier retained
Screen mirroring, Bluetooth audio streaming and a built in DSP
Supports aftermarket reversing, front and blind spot cameras up to AHD 1080P
No coding required, the TV menu is activated automatically even if your car has no factory TV module
Official UK stock, full manufacturer warranty
If your car does have a factory TV module, it is bypassed at the module itself using the optical loop connector supplied in the box.
Why choose Mr12Volt
Many low cost Range Rover Sport CarPlay adapters connect through the AUX input, which means compromised sound quality and less functionality than your factory system already gives you. Every genuine Mr12Volt interface integrates directly with your car's MOST fibre optic network instead, preserving digital audio quality, steering wheel controls and touchscreen operation exactly as Land Rover intended.
Official UK authorised Mr12Volt stockist
Full manufacturer warranty
UK stock for fast dispatch
UK-based support
Nationwide network of approved installers, or fit it yourself in a few hours
